首頁進口晶振泰藝晶振X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃

X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃

  • 頻率：48MHz
  • 尺寸：1612
  • 應　用： X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃,臺灣泰藝無源晶體,典型的1.65x1.25x0.3mm超薄陶瓷包裝，8mm寬的膠帶和卷軸包裝，用于自動組裝，緊密公差10ppm可用。藍牙，移動電話，無線局域網。事務工作自動化...
  • RoHS RoHS2


X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃,臺灣泰藝無源晶體,典型的1.65 x 1.25 x 0.3 mm超薄陶瓷包裝，8 mm寬的膠帶和卷軸包裝，用于自動組裝，緊密公差10 ppm可用。藍牙，移動電話，無線局域網。事務工作自動化，音頻和視頻。

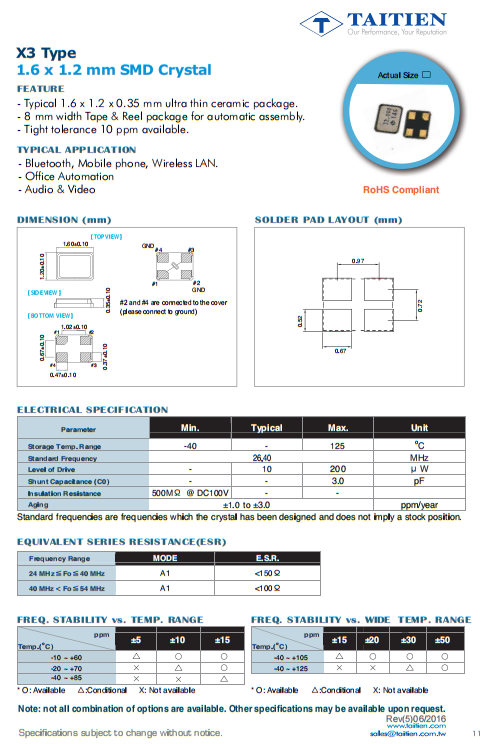

參數 最小值 典型的 最大值 Unit
儲存溫度 -40 - 125 ℃
標準頻率 48 MHz
驅動電平 - 10 200 uW
并聯電容 - - 3.0 pF
絕緣電阻 500M Q  @ DC100V - -
老化  ±1.0 to ±3.0 ppm/year



TAITIEN原廠編碼 生產廠家 型號 頻率 頻率穩定度 頻率偏差 負載電容 工作溫度
X3AEEJNANF-27.000000 Taitien晶振 X3 27MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEEJNANF-27.000000 Taitien晶振 X3 27MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEEJNANF-27.000000 Taitien晶振 X3 27MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEEJNANF-27.120000 Taitien晶振 X3 27.12MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEEJNANF-27.120000 Taitien晶振 X3 27.12MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEEJNANF-27.120000 Taitien晶振 X3 27.12MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEEJNANF-30.000000 Taitien晶振 X3 30MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEEJNANF-30.000000 Taitien晶振 X3 30MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEEJNANF-30.000000 Taitien晶振 X3 30MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEEJNANF-38.400000 Taitien晶振 X3 38.4MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEEJNANF-38.400000 Taitien晶振 X3 38.4MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEEJNANF-38.400000 Taitien晶振 X3 38.4MHz ±30ppm ±30ppm 8pF -40°C ~ 105°C
X3AEELNANF-26.000000 Taitien晶振 X3 26MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-26.000000 Taitien晶振 X3 26MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-26.000000 Taitien晶振 X3 26MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-27.000000 Taitien晶振 X3 27MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-27.000000 Taitien晶振 X3 27MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-27.000000 Taitien晶振 X3 27MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-27.120000 Taitien晶振 X3 27.12MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-27.120000 Taitien晶振 X3 27.12MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-27.120000 Taitien晶振 X3 27.12MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-30.000000 Taitien晶振 X3 30MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-30.000000 Taitien晶振 X3 30MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-30.000000 Taitien晶振 X3 30MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-38.400000 Taitien晶振 X3 38.4MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-38.400000 Taitien晶振 X3 38.4MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-38.400000 Taitien晶振 X3 38.4MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-40.000000 Taitien晶振 X3 40MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-40.000000 Taitien晶振 X3 40MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-40.000000 Taitien晶振 X3 40MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-48.000000 Taitien晶振 X3 48MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-48.000000 Taitien晶振 X3 48MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3AEELNANF-48.000000 Taitien晶振 X3 48MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
X3LEECNANF-26.000000 Taitien晶振 X3 26MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-26.000000 Taitien晶振 X3 26MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-26.000000 Taitien晶振 X3 26MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-27.000000 Taitien晶振 X3 27MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-27.000000 Taitien晶振 X3 27MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-27.000000 Taitien晶振 X3 27MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-27.120000 Taitien晶振 X3 27.12MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-27.120000 Taitien晶振 X3 27.12MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-27.120000 Taitien晶振 X3 27.12MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-30.000000 Taitien晶振 X3 30MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-30.000000 Taitien晶振 X3 30MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-30.000000 Taitien晶振 X3 30MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-38.400000 Taitien晶振 X3 38.4MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-38.400000 Taitien晶振 X3 38.4MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-38.400000 Taitien晶振 X3 38.4MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-40.000000 Taitien晶振 X3 40MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-40.000000 Taitien晶振 X3 40MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
X3LEECNANF-40.000000 Taitien晶振 X3 40MHz ±30ppm ±30ppm 6pF -20°C ~ 70°C
