更多>>OM-0100-C7-20ppm-TA-QA,6G基站晶振,低頻SMT振蕩器
- 頻率：100KHz
- 尺寸：3.2×1.5mm
- 應 用： Micro進口晶振,OM-0100-C7有源晶振,OM-0100-C7-20ppm-TA-QA晶振,3215mm貼片晶振,低頻SMT振蕩器,符合AEC-Q200汽車認證晶振,頻率100KHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性20ppm,低功耗晶振,抗沖擊晶振,抗振動晶振,...
-
-
.jpg)
OM-0100-C7-20ppm-TA-QA,6G基站晶振,低頻SMT振蕩器,Micro進口晶振,OM-0100-C7有源晶振,OM-0100-C7-20ppm-TA-QA晶振,3215mm貼片晶振,低頻SMT振蕩器,符合AEC-Q200汽車認證晶振,頻率100KHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性20ppm,低功耗晶振,抗沖擊晶振,抗振動晶振,6G基站晶振,汽車音響設備晶振,測試和測量設備晶振,工業設備晶振.

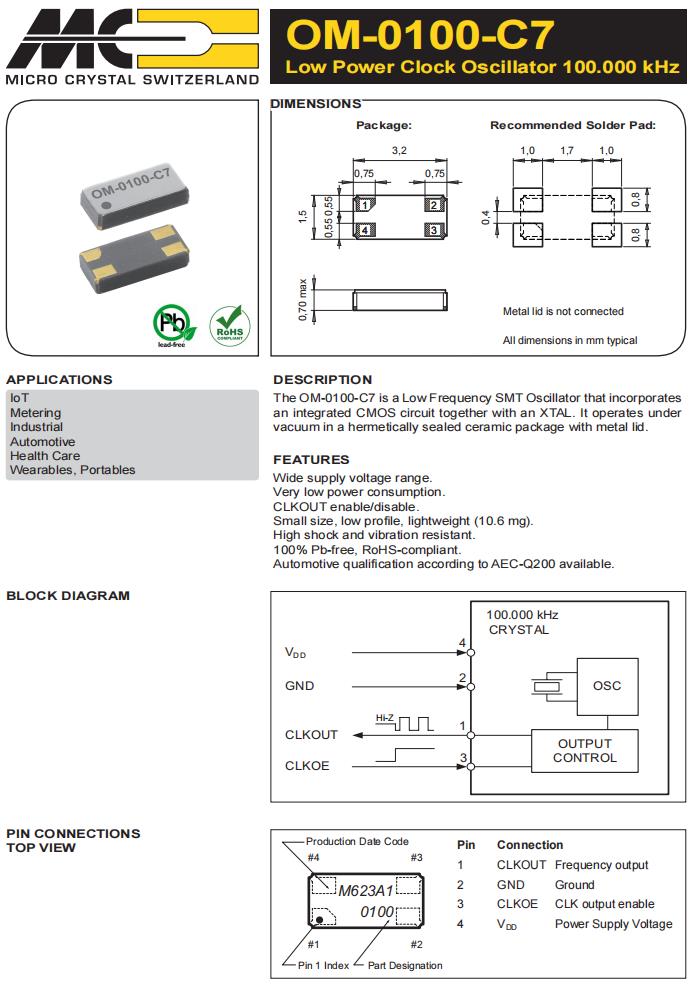

OM-0100-C7-20ppm-TA-QA,6G基站晶振,低頻SMT振蕩器 特點：
-寬電源電壓范圍
-非常低的功耗
-CLKOUT使能/禁用
-小尺寸，低姿態，重量輕(10.6毫克)
-高抗沖擊和振動
-100%無鉛，符合RoHS標準
-提供符合AEC-Q200的汽車認證

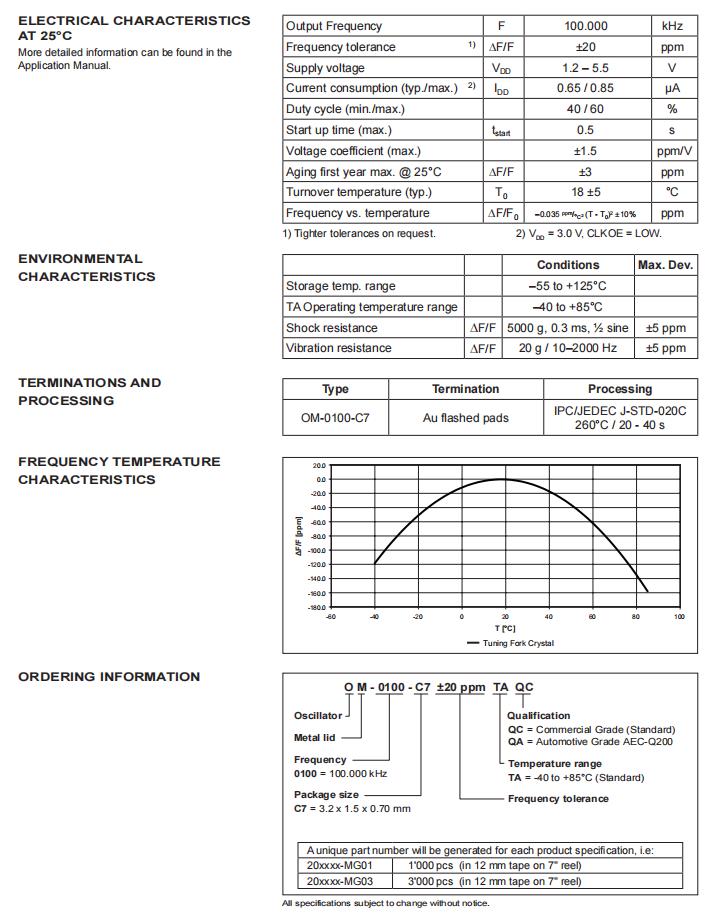

OM-0100-C7-20ppm-TA-QA,6G基站晶振,低頻SMT振蕩器規格表
| 標準頻率 | FL | 100 | KHz |
| 頻率容差 | ΔF/F | ±20 | ppm |
| 電源電壓 | VDD | 3.3 | V |
| 電流消耗(典型/最大值) | IDD | 0.65 / 0.85 | µA |
| 占空比(最小值/最大值) | 40/60 | % | |
| 儲存溫度 | T_stg | −55~+125 | °C |
| 工作溫度 | T_use | −40~+85 | °C |
| 啟動時間（最大） | tstart | 0.5 | S |
| 周轉溫度(典型值） | T0 | 18 ±5 | °C |
| 老化第一年 | ΔF/F | ±3 | ppm |
|
頻率溫度穩定性
|
ΔF/F0 | –0.035 ppm/ °C² (T - T0)2 ±10% | ppm |
.jpg)

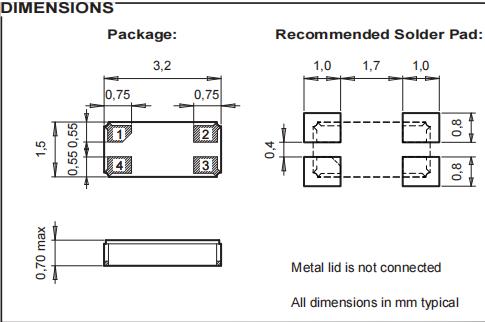

OM-0100-C7-20ppm-TA-QA,6G基站晶振,低頻SMT振蕩器尺寸圖
