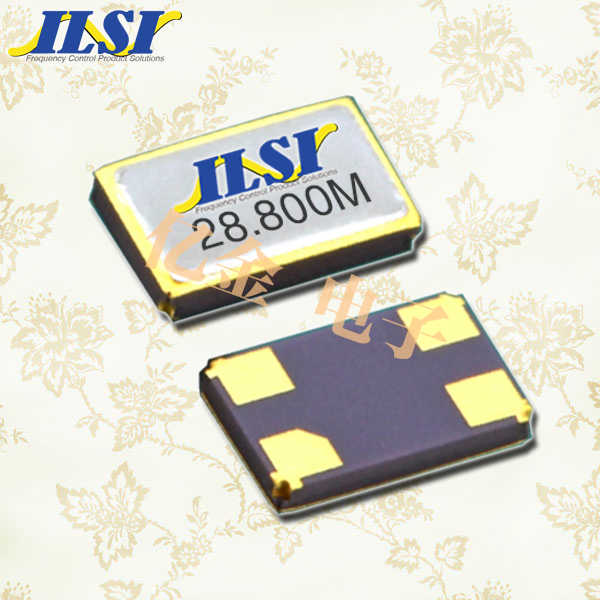

ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振

  • 頻率：32MHz
  • 尺寸：3.2×2.5mm
  • 應　用： 美國進口晶振,ILSI晶振,ISA16有源晶振,貼片石英晶振,ISA16-32AH-32.000 MHz晶振,3225mm晶振,石英晶體振蕩器,四腳封裝晶振,頻率32MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,小體積晶振,高品質晶振,高穩定性晶振...
  • RoHS RoHS2


ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振,美國進口晶振,ILSI晶振,ISA16有源晶振,貼片石英晶振,ISA16-32AH-32.000 MHz晶振,3225mm晶振,石英晶體振蕩器,四腳封裝晶振,頻率32MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,小體積晶振,高品質晶振,高穩定性晶振,照相機晶振,微處理器晶振,網絡附屬存儲晶振,數字設備晶振.
ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振特點
●通過AEC-Q200認證
●通過TS16949認證的生產線
●LVCMOS兼容輸出
●行業標準包裝3.2mm x 2.5mm
●五種電源電壓選擇，1.8V, 2.5V, 2.8V, 3.0V或3.3V
●無鉛、無鹵、無銻
●符合RoHS和REACH標準

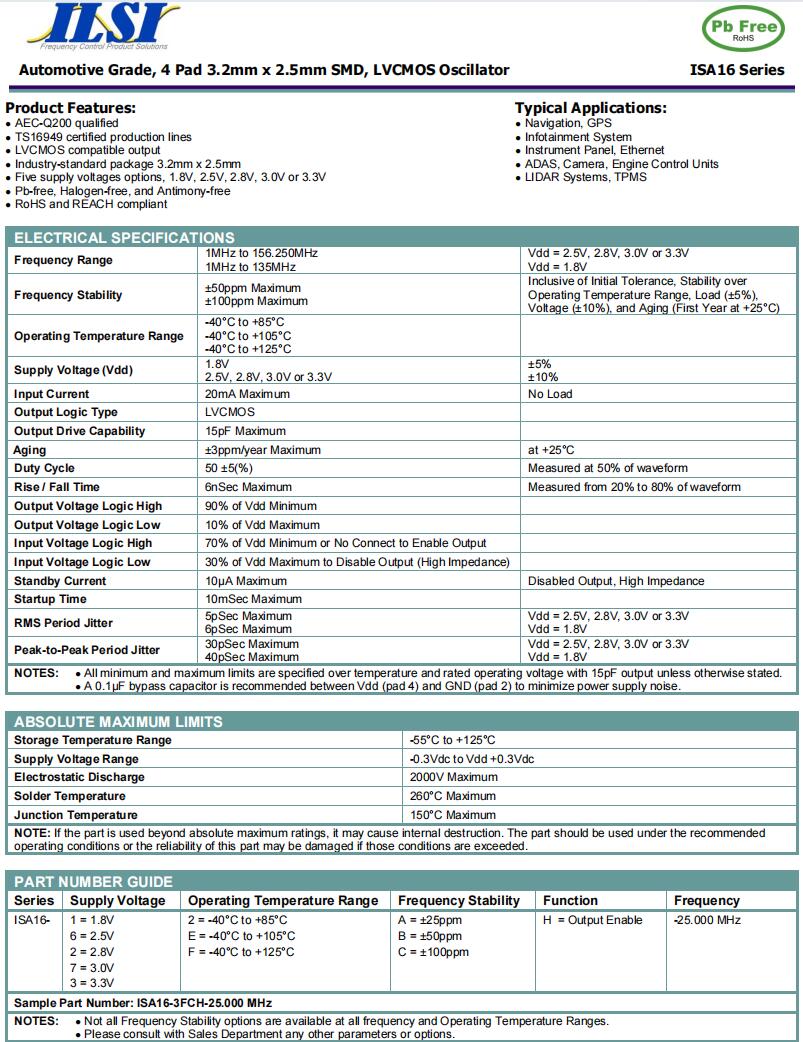

ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振規格表
Frequency Range 32 MHz
Frequency Stability ±50ppm Maximum
±100ppm Maximum		 Inclusive of Initial Tolerance, Stability over  Operating Temperature Range, Load (±5%), Voltage (±10%), and Aging (First Year at +25°C)
Operating Temperature Range -40°C to +85°C
-40°C to +105°C
-40°C to +125°C
Supply Voltage (Vdd) 1.8V
2.5V, 2.8V, 3.0V or 3.3V		 ±5%
±10%
Input Current 20mA Maximum No Load
Output Logic Type LVCMOS
Output Drive Capability 15pF Maximum
Aging ±3ppm/year Maximum at +25°C
Duty Cycle 50 ±5(%) Measured at 50% of waveform
Rise / Fall Time 6nSec Maximum Measured from 20% to 80% of waveform
Output Voltage Logic High 90% of Vdd Minimum
Output Voltage Logic Low 10% of Vdd Maximum
Input Voltage Logic High 70% of Vdd Minimum or No Connect to Enable Output
Input Voltage Logic Low 30% of Vdd Maximum to Disable Output (High Impedance)
Standby Current 10µA Maximum Disabled Output, High Impedance
Startup Time 10mSec Maximum
RMS Period Jitter 5pSec Maximum
6pSec Maximum		 Vdd = 2.5V, 2.8V, 3.0V or 3.3V
Vdd = 1.8V
Peak-to-Peak Period Jitter 30pSec Maximum
40pSec Maximum		 Vdd = 2.5V, 2.8V, 3.0V or 3.3V
Vdd = 1.8V
NOTES:   ● All minimum and maximum limits are specified over temperature and rated operating voltage with 15pF output unless otherwise stated.
                         ● A 0.1µF bypass capacitor is recommended between Vdd (pad 4) and GND (pad 2) to minimize power supply noise.

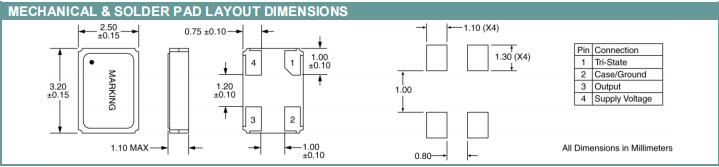

ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振尺寸圖
