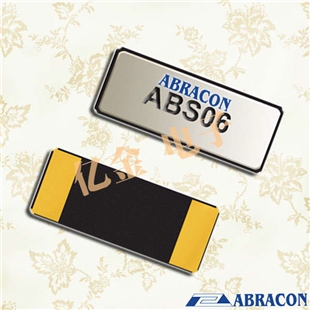

ABS06-32.768KHZ-9-1-T 32.768KHz 10PPM 9PF 2012
- 頻率：32.768KHz
- 尺寸：2012
- 應 用： ABS06-32.768KHZ-9-1-T32.768KHz10PPM9PF2012，歐美艾伯康晶振公司,廣泛的通信和測量設備的商業和工業應用無線通信PDA和棕櫚飛行員,陶瓷封裝提供優良的環境和耐熱性擴展溫度-55C到+125C的工業應用,小型尺寸2.0x1.2x0....
-
-
.jpg)

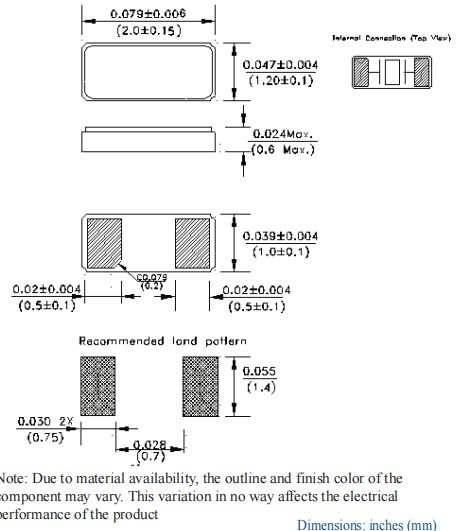

ABS06-32.768KHZ-9-1-T 32.768KHz 10PPM 9PF 2012，歐美艾伯康晶振公司,廣泛的通信和測量設備的商業和工業應用無線通信PDA和棕櫚飛行員,陶瓷封裝提供優良的環境和耐熱性擴展溫度-55°C到+125°C的工業應用,小型尺寸2.0 x 1.2 x 0.6mm，理想的高密度電路板

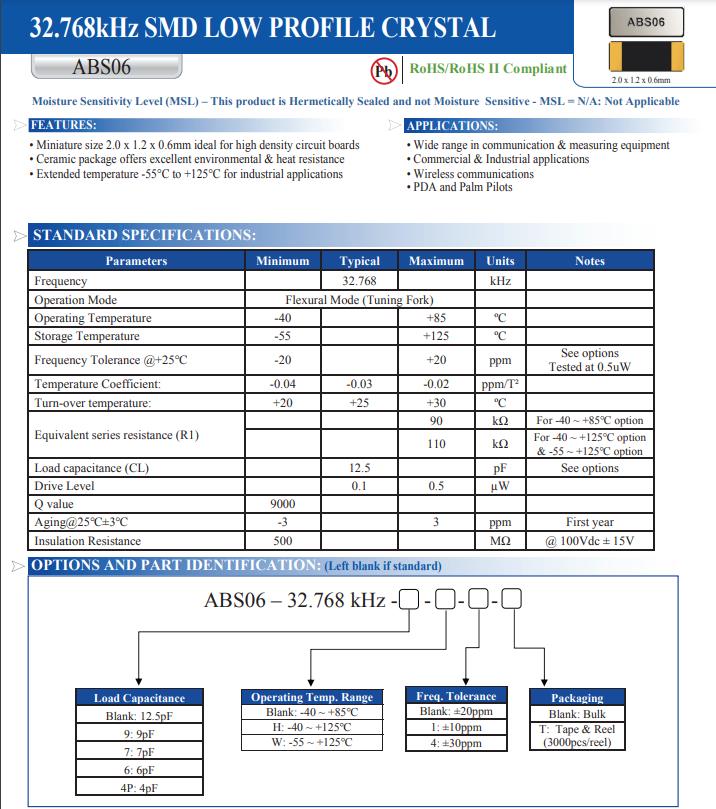

ABS06-32.768KHZ-9-1-T 32.768KHz 10PPM 9PF 2012
| Parameters | Minimum | Typical | Maximum | Units | ||||||
| 頻率 | 32.768 |
 Hz |
||||||||
| 工作模式 | Flexural Mode (Tuning Fork) | |||||||||
| 工作溫度 | --40 | +85 | ºC | |||||||
| 儲存溫度 | --55 | + 125 | ºC | |||||||
| 頻率容差 @+25°C | --20 | +20 | ppm | |||||||
| 溫度系數 | --0.04 | --0.03 | --0.02 | ppm/T² | ||||||
| 翻轉溫度: | +20 | +25 | +30 |
 ºC |
||||||
| 等效串聯電阻 (R1) | 90 | ? | ||||||||
| 110 |
 ? |
|||||||||
| 負載電容 (CL) | 12.5 | pF | ||||||||
| 驅動電平 | 0.1 | 0.5 | µW | |||||||
| Q值 | 9000 | |||||||||
| 老化@25°C±3°C | --3 | 3 | ppm | |||||||
| 絕緣電阻 | 500 | M? | ||||||||
.jpg)
ABS06-32.768KHZ-9-1-T 32.768KHz 10PPM 9PF 2012
.jpg)
| ABRACON編號 | 制造商 | 型號 | 頻率 | 頻率容差 | 負載電容 |
| ABMM-32.000MHZ-B2F-T | Abracon LLC | ABMM | 32 MHz | ±20ppm | 18pF |
| ABS09-32.768KHZ-T | Abracon LLC | ABS09 | 32.768 kHz | ±20ppm | 12.5pF |
| ABS09-32.768KHZ-9-T | Abracon LLC | ABS09 | 32.768 kHz | ±20ppm | 9pF |
| ABMM-14.7456MHZ-B2-T | Abracon LLC | ABMM | 14.7456 MHz | ±20ppm | 18pF |
| ABMM2-14.7456MHZ-E2-T | Abracon LLC | ABMM2 | 14.7456 MHz | ±20ppm | 18pF |
| ABMM-25.000MHZ-B2-T | Abracon LLC | ABMM | 25 MHz | ±20ppm | 18pF |
| ABMM2-7.3728MHZ-E2-T | Abracon LLC | ABMM2 | 7.3728 MHz | ±20ppm | 18pF |
| ABMM-16.000MHZ-B2-T | Abracon LLC | ABMM | 16 MHz | ±20ppm | 18pF |
| ABMM2-11.0592MHZ-E2-T | Abracon LLC | ABMM2 | 11.0592 MHz | ±20ppm | 18pF |
| ABS07-32.768KHZ-T | Abracon LLC | ABS07 | 32.768 kHz | ±20ppm | 12.5pF |
| ABS07-32.768KHZ-7-T | Abracon LLC | ABS07 | 32.768 kHz | ±20ppm | 7pF |
| ABS07-166-32.768KHZ-T | Abracon LLC | ABS07 | 32.768 kHz | ±10ppm | 7pF |
| ABS07-32.768KHZ-9-T | Abracon LLC | ABS07 | 32.768 kHz | ±20ppm | 9pF |
| ABS07AIG-32.768KHZ-9-T | Abracon LLC | ABS07AIG | 32.768 kHz | ±20ppm | 9pF |
| ABS07AIG-32.768KHZ-9-D-T | Abracon LLC | ABS07AIG | 32.768 kHz | ±20ppm | 9pF |
| ABS07-32.768KHZ-9-4-T | Abracon LLC | ABS07 | 32.768 kHz | ±30ppm | 9pF |
| ABS07L-32.768KHZ-T | Abracon LLC | ABS07L | 32.768 kHz | ±20ppm | 12.5pF |
| ABS07-32.768KHZ-1-T | Abracon LLC | ABS07 | 32.768 kHz | ±10ppm | 12.5pF |
| ABS05-32.768KHZ-T | Abracon LLC | ABS05 | 32.768 kHz | ±20ppm | 12.5pF |
| ABS05-32.768KHZ-9-T | Abracon LLC | ABS05 | 32.768 kHz | ±20ppm | 9pF |
| ABS06-32.768KHZ-T | Abracon LLC | ABS06 | 32.768 kHz | ±20ppm | 12.5pF |
| ABS06-32.768KHZ-9-T | Abracon LLC | ABS06 | 32.768 kHz | ±20ppm | 9pF |
| ABS06-32.768KHZ-1-T | Abracon LLC | ABS06 | 32.768 kHz | ±10ppm | 12.5pF |
| ABS05-32.768KHZ-7-T | Abracon LLC | ABS05 | 32.768 kHz | ±20ppm | 7pF |
| ABS05-32.768KHZ-X-T5 | Abracon LLC | ABS05 | 32.768 kHz | ±20ppm | 4pF |
| ABS05-32.768KHZ-6-T | Abracon LLC | ABS05 | 32.768 kHz | ±20ppm | 6pF |
| ABS05-32.768KHZ-X-3-T3 | Abracon LLC | ABS05 | 32.768 kHz | ±25ppm | 4pF |
| ABS06-32.768KHZ-9-1-T | Abracon LLC | ABS06 | 32.768 kHz | ±10ppm | 9pF |
| ABS05W-32.768KHZ-K-2-T | Abracon LLC | ABS05W | 32.768 kHz | ±20ppm | 4pF |
| ABS07-32.768KHZ-4-T | Abracon LLC | ABS07 | 32.768 kHz | ±30ppm | 4pF |
| ABS07-32.768KHZ-9-H-T | Abracon LLC | ABS07 | 32.768 kHz | ±20ppm | 9pF |
| ABS07AIG-32.768KHZ-7-D-T | Abracon LLC | ABS07AIG | 32.768 kHz | ±20ppm | 7pF |
| ABS25-32.000KHZ-T | Abracon LLC | ABS25 | 32 kHz | ±30ppm | 12.5pF |
| ABS05W-32.768KHZ-J-2-T | Abracon LLC | ABS05W | 32.768 kHz | ±20ppm | 4pF |
| ABS06-32.768KHZ-7-T | Abracon LLC | ABS06 | 32.768 kHz | ±20ppm | 7pF |
| ABS25-60.000KHZ-T | Abracon LLC | ABS25 | 60 kHz | ±30ppm | 12.5pF |
| ABS04W-32.768KHZ-6-J2-T5 | Abracon LLC | ABS04W | 32.768 kHz | ±20ppm | 6pF |
| ABS04W-32.768KHZ-4-D2-T5 | Abracon LLC | ABS04W | 32.768 kHz | ±20ppm | 4pF |
| ABS04W-32.768KHZ-4-J2-T5 | Abracon LLC | ABS04W | 32.768 kHz | ±20ppm | 4pF |
| ABMM2-50.000MHZ-E2F-T | Abracon LLC | ABMM2 | 50 MHz | ±20ppm | 18pF |
| ABMM2-20.000MHZ-E2-T | Abracon LLC | ABMM2 | 20 MHz | ±20ppm | 18pF |
| ABMM2-14.31818MHZ-E2-T | Abracon LLC | ABMM2 | 14.31818 MHz | ±20ppm | 18pF |
| ABMM-11.0592MHZ-B2-T | Abracon LLC | ABMM | 11.0592 MHz | ±20ppm | 18pF |
| ABMM-29.4912MHZ-10-B-T | Abracon LLC | ABMM | 29.4912 MHz | ±50ppm | 10pF |
| ABMM1-24.000MHZ-16-T | Abracon LLC | ABMM1 | 24 MHz | ±50ppm | 16pF |
| ABS13-32.768KHZ-T | Abracon LLC | ABS13 | 32.768 kHz | ±20ppm | 12.5pF |
