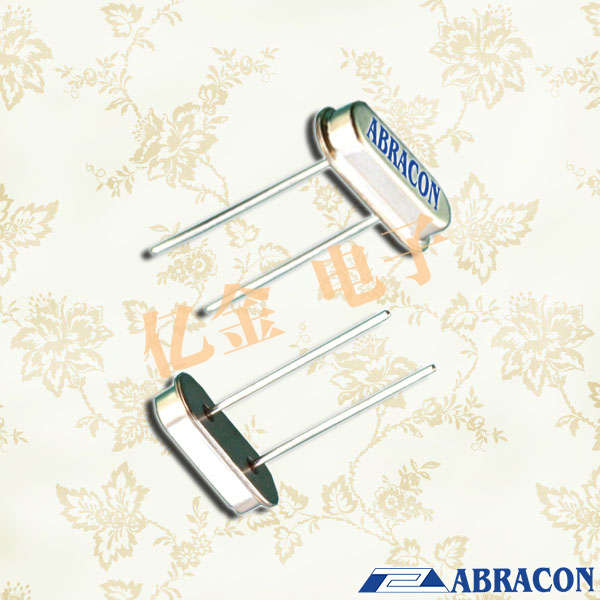

ABL-7.3728MHZ-B2 7.3728MHz 50PPM 18PF 49S
- 頻率：7.3728MHz
- 尺寸：11.50mm x 5.00mm
- 應 用： ABL-7.3728MHZ-B27.3728MHz50PPM18PF49S，歐美艾伯康晶振公司,高可靠性，低成本，緊密穩定性和延長溫度證明電阻焊接金屬包,家用電子計算機，調制解調器，和通信高精度TCXO和時鐘應用微處理器ABL-7.3728MHZ-B27.3728MH...
-
.jpg)
ABL-7.3728MHZ-B2 7.3728MHz 50PPM 18PF 49S，歐美艾伯康晶振公司,高可靠性，低成本，緊密穩定性和延長溫度證明電阻焊接金屬包,家用電子計算機，調制解調器，和通信高精度TCXO和時鐘應用微處理器
ABL-7.3728MHZ-B2 7.3728MHz 50PPM 18PF 49S
| 參數 | 最小值 | 典型的 |
 最大值 |
單位 | 備注 | |||||||||
| 頻率 | 3.579545 | 70 | MHz | |||||||||||
| 工作模式 | 3.579545 | 24.0 |
Fundamental AT- cut (Standard) |
|||||||||||
| 24.01 | 70.00 |
3rd OT AT-cut (Standard) |
||||||||||||
| 24.01 | 50.00 |
Fundamental AT- cut or BT-cut (See options) |
||||||||||||
| 工作溫度 | 0 | +70 | ºC | See options | ||||||||||
| 儲存溫度 | --55 | + 125 | ºC | |||||||||||
| 頻率公差 | --50 | +50 | ppm | See options | ||||||||||
| 工作溫度下的頻率穩定性 ( ref. to +25°C) | --50 | +50 | ppm | See options | ||||||||||
| 等效串聯電阻(R1) | See table 1 below | ? | ||||||||||||
| 并聯電容 (C0) | 7 | pF | ||||||||||||
| 負載電容 (CL) | 18 | pF | See options | |||||||||||
| 驅動電平 | 100 | 1000 | µW | |||||||||||
| 老化 @ 25°C per year | ±5 | ppm | ||||||||||||
| 絕緣電阻 | 500 | M? | @ 100Vdc ± 15V | |||||||||||
| 驅動器級別依賴性（DLD，至少測試7點：從1µW到500µW） | ± 10 | ppm |
Δfrequency (Max – Min) |
|||||||||||
|
25% of Max ESR |
? | ΔESR (Max – Min) | ||||||||||||
|
Max ESR in Table 1 |
? |
Max ESR over DLD range |
||||||||||||
.jpg)
ABL-7.3728MHZ-B2 7.3728MHz 50PPM 18PF 49S
| ABRACON編號 | 制造商 | 型號 | 頻率 | 負載電容 |
| ABL-8.000MHZ-B2 | Abracon LLC | ABL | 8 MHz | 18pF |
| ABL-16.000MHZ-B2 | Abracon LLC | ABL | 16 MHz | 18pF |
| ABL-4.000MHZ-B2 | Abracon LLC | ABL | 4 MHz | 18pF |
| ABL-12.000MHZ-B2 | Abracon LLC | ABL | 12 MHz | 18pF |
| ABL-20.000MHZ-B2 | Abracon LLC | ABL | 20 MHz | 18pF |
| ABL-12.288MHZ-B2 | Abracon LLC | ABL | 12.288 MHz | 18pF |
| ABL-3.579545MHZ-B2 | Abracon LLC | ABL | 3.579545 MHz | 18pF |
| ABL-11.0592MHZ-B2 | Abracon LLC | ABL | 11.0592 MHz | 18pF |
| ABL-6.000MHZ-B2 | Abracon LLC | ABL | 6 MHz | 18pF |
| ABL-7.3728MHZ-B2 | Abracon LLC | ABL | 7.3728 MHz | 18pF |
| ABL-24.000MHZ-B2 | Abracon LLC | ABL | 24 MHz | 18pF |
| ABL-10.000MHZ-B2 | Abracon LLC | ABL | 10 MHz | 18pF |
| ABL-4.9152MHZ-B2 | Abracon LLC | ABL | 4.9152 MHz | 18pF |
| ABL-3.6864MHZ-B2 | Abracon LLC | ABL | 3.6864 MHz | 18pF |
| ABL-9.8304MHZ-B2 | Abracon LLC | ABL | 9.8304 MHz | 18pF |
| ABL-25.000MHZ-20-R40B4HF-T | Abracon LLC | ABL | 25 MHz | 20pF |
| ABL-8.000MHZ-B2-T | Abracon LLC | ABL | 8 MHz | 18pF |
| ABL-14.31818MHZ-B2 | Abracon LLC | ABL | 14.31818 MHz | 18pF |
| ABL-4.096MHZ-B2 | Abracon LLC | ABL | 4.096 MHz | 18pF |
| ABL-25.000MHZ-B2F | Abracon LLC | ABL | 25 MHz | 18pF |
| ABL-22.1184MHZ-B2 | Abracon LLC | ABL | 22.1184 MHz | 18pF |
| ABL-14.7456MHZ-B2 | Abracon LLC | ABL | 14.7456 MHz | 18pF |
| ABL-16.384MHZ-B2 | Abracon LLC | ABL | 16.384 MHz | 18pF |
| ABL-19.6608MHZ-B2 | Abracon LLC | ABL | 19.6608 MHz | 18pF |
| ABL-27.000MHZ-B2F | Abracon LLC | ABL | 27 MHz | 18pF |
| ABL-40.000MHZ-B2 | Abracon LLC | ABL | 40 MHz | 18pF |
| ABL-9.8304MHZ-20-R50-D-T | Abracon LLC | ABL | 9.8304 MHz | 20pF |
| ABL-20.000MHZ-N2X-T | Abracon LLC | ABL | 20 MHz | 18pF |
| ABL-12.000MHZ-N2X-T | Abracon LLC | ABL | 12 MHz | 18pF |
| ABL-25.000MHZ-N2XF-T | Abracon LLC | ABL | 25 MHz | 18pF |
| ABL-20.000MHZ-B2-T | Abracon LLC | ABL | 20 MHz | 18pF |
| ABL-18.432MHZ-B2 | Abracon LLC | ABL | 18.432 MHz | 18pF |
| ABL-24.576MHZ-B2F | Abracon LLC | ABL | 24.576 MHz | 18pF |
